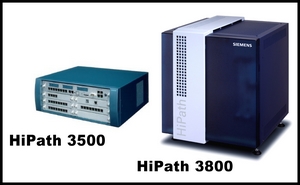

HiPath 3000 Series

 HiPath ComScendo features

● Advisory messages

● Intercept position/attendant console

● Camp-on/call waiting tone

● Missed calls list

● Do Not Disturb/"ringer cutoff"

● Call pickup

● Call forwarding from extensions

● Call source and call destination display

● Call intrusion on call forwarding and call pickup

● Classes of service

● Executive/secretary function

● Display languages (can be specified individually)

● Paging (internal announcement)

● Call charge recording

● Group call

● Internal texts for feature handset

● Internal telephone directory

● Conference (internal/external)

● Speed dialing (individual/central)

● Automatic line seizure

● Trunk keys

● Call toggling

● Text messages

● Music-on-hold with system-driven announcements

● External music source (optional)

● One Number Service

● Night service/day service

● Park

● Account code

● Relay (actuators/sensors)

● Consultation

● Callback on busy and no answer (automatic)

● Call number suppression

● Call signaling

● Call forwarding after timeout on RNA, immediately on busy

● Group ringing

● Hunt group (linear/cyclic)

● Changeover on (individual code lock)

● Telephone book, central

● Entrance telephone and door opener functions

● Transferring a call (internal/external)

● Number redial (enhanced)

● Automatic recall from public network carrier

● Encryption (SPE)

System interfaces

On the network side

Euro ISDN

● S0 basic rate interface with DSS1 protocol

– System connection

– Point-to-multipoint connection

● S2M primary rate interface with DSS1 protocol

US-ISDN

● Basic rate interface (BRI) and primary rate interface (T1/PRI)

Analog trunks

● Analog trunk connection without direct inward dialing (DDI/DID) with CLIP support

ITSP (Internet Telephony Service Provider)

support via SIP

● System connection

● User connection

HG 1500

● 2 x10/100BaseT interface or 10/100 Mbps LAN/WAN gateway On the user side

IP

● CorNet IP or SIP for integration of IP terminals

Analog

● For connecting analog terminals, such as fax, telephones, modem.

Digital

● For connecting digital two-channel system telephones (UP0/E)

● For connecting DECT base stations

Euro ISDN

● S0 user bus for up to eight independently powered terminal devices (e.g. Group 4 fax, ISDN-PC card)

HG 1500

● 2 x10/100BaseT interface or 10/100 Mbps LAN/WAN gateway

– For connecting IP terminals

DECT

● Siemens Gigaset

– GAP-enabled DECT terminals

Networking

● CorNet-IP support of HiPath OpenOffice EE, HiPath 2000/3000/4000 V4

● SIPQ-V2 support of HiPath OpenOffice EE, HiPath 2000/3000/4000/8000/OpenScape Voice

● Suppport for digital fixed connections S0, S2M with CorNet-N and CorNet-NQ or QSig protocol Other interfaces

V.24

● For connecting service PCs, call charge computers, call charge printers

● To connect external applications with the CSTA protocol

E&M interface

(HiPath 3800)

LAN interface

● 10 Mbit for system administration via TCP/IP

PABX SIEMENS Hipath 3500

The HiPath 3500 is a 19" rack mounted system ideal for up to 60 users. The motherboard includes 2 ISDN2e circuits (4 channels), 8 digital extensions, 4 analogue extensions and 6 spare slots.

It offers solutions to suit many different applications, from basic systems to advanced and complex solutions.

The HiPath 3500 is based on Euro-ISDN technology for digital network and system interfaces. Interactive user prompting via display and dialogue keys on optiPoint handsets provides for easy and quick activation of features. The HiPath 3000's universal software concept offers a professional range of features normally only available on larger systems.

Initial configuration, motherboard includes :

• 2 ISDN2e circuits (4 channels)
• 8 digital extensions
• 4 analogue extensions
• 6 spare slots
• The current version (v5) of the HiPath 3500 Phone System includes built in voicemail and auto attendant.

Key Customer Features include :

·    Rack mountable

·    ISDN2e, ISDN 30e and analogue lines

·    Attendant PC (pc operators console)

·    CSTA interface (computer supported telephony applications)

·    CTI Tapi interface

·    remote maintenance (via built in ISDN modem or optional analogue modem)

·    admin via TCP/IP (optional module)

·    external or internal music on hold modules (optional)

·    digital and analogue voicemail interfaces

·    IP networking (via optional HG1500 VOIP board)

·    IP handsets (via optional HG1500 VOIP board)

·    optiPoint digital handsets

·    DECT Lite Compatibility (max 7 base stations, 32 handsets).

·    The system also includes system documentation on CD and a mains power cable.

PABX SIEMENS Hipath 3800

The Siemens HiPath 3800 Real-Time IP System is the newest model to the HiPath 3000 Phone System family and supports up to 500 users so your business can take full advantage of the latest IP technologies.

The Siemens HiPath 3800 makes it easy to add the applications you need to tailor your business. You can take full advantage of HiPath applications within a single location or throughout a multi-site network.

The HiPath 3800 Real-Time IP System delivers the benefits of IP today for a flexible, affordable path to convergence. Your business benefits with:

Multi-site networking

Connect all your office together into one seamless network with CorNet IP multi-site networking so you can centralize applications.

Application sharing

Save money while increasing employee productivity by sharing applications across your existing network, connecting remote users to your LAN/WAN and adding IP telephones. Tailor HiPath applications to your business needs.

Simplified system management

Simple Network Management Protocol (SNMP) based administration and fault management, along with high speed Internet access, are available without dedicated circuits. The HG 1500 integrated gateway uses Ethernet connectivity to provide SNMP management capabilities, making it easy to administer both local and remote locations.

HiPath 3000 uses the same networking protocol (CorNet IP) as the larger HiPath 4000 Real-time IP System, ensuring offices of diferent sizes can choose the platform optimized for their business needs and still take advantage of strong interworking capabilites across different systems via the IP protocol.
